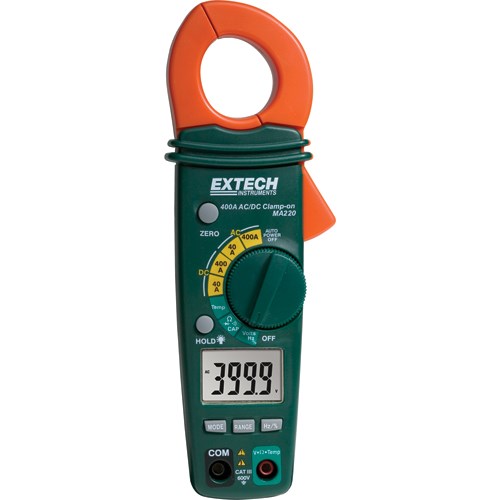

Extech MA220 400A AC/DC Clamp Meter
Product Description
Product Features
- Functions include AC/DC voltage, AC/DC current, capacitance, frequency, temperature, and duty cycle
- High accuracy for current measurements
- 4000 count LCD display
- Data hold, auto zero
- Autoranging with auto power off
- 0.9" (23mm) jaw size accommodates conductors up to 300MCM
- Compact size allows measurements in tight locations
- Complete with test leads, type K bead wire probe, case, and two AAA batteries
Specifications:
| Dimensions: | 7.9" x 2" x 1.4" |
| AC Current: | 40, 400A (0.01A) |
| AC Voltage: | 400mV, 4V, 40V, 400V, 600V (0.1mV) |
| Basic Accuracy: | AC: ±3%, DC: ±2.5% |
| Capacitance: | 40nF, 400nF, 4μF, 40μF, 100μF (0.01nF) |
| Continuity: | Beeper ≤30Ω |
| DC Current: | 40, 400A (0.01A) |
| DC Voltage: | 400mV, 4V, 40V, 400V, 600V (0.1mV) |
| Frequency: | 5Hz, 50Hz, 500Hz, 5kHz, 150kHz (0.001Hz) |
| Resistance: | 400, 4k, 40k, 400k, 4M, 40MΩ (0.1Ω) |
| Temperature: | -58 to 1830°F (-50 to 1000°C) (1°) |
