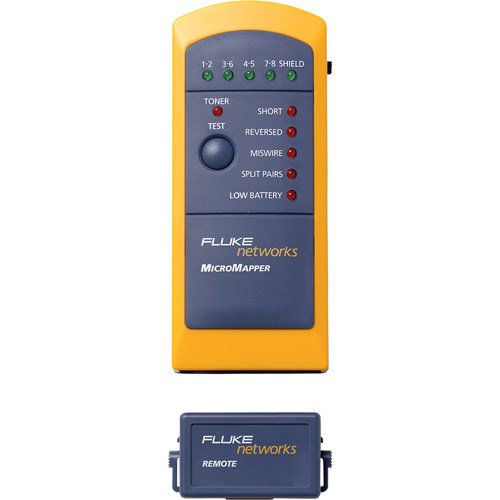

The MicroMapper quickly and easily tests twisted pair cabling, giving you visibility of opens, shorts, crossed, reversed and split pairs. Just push the TEST button and MicroMapper will automatically scan all wire pairs for any existing faults in your cable.
MicroMapper's built-in tone generator works with the IntelliTone Probe or any other analog probe, allowing you to trace cable through walls, floors, and ceilings.
The MicroMapper also includes a remote unit that allows one person to test installed cabling or patch cords.
Product Features
Verifies voice/data/video cable wiremap with a "Quick-check" test
Tests twisted pair and coax connectors without adapters
Locates cable with built-in analog toner
Identifies cable with up to eight optional cable IDs
Test twisted pair cables for opens, shorts, crossed pairs, reversed pairs and split pairs
Easy-to-read fault display
Tone generator for tracing installed cables hidden in walls, floors and ceilings
Remote unit enables one-person testing of installed cables
