Keithley 3721 Dual 1×20 Multiplexer Card

Price:

Call for pricing

SKU:

3721

Brand:

Keithley

Weight:

2.50 LBS

Product Description

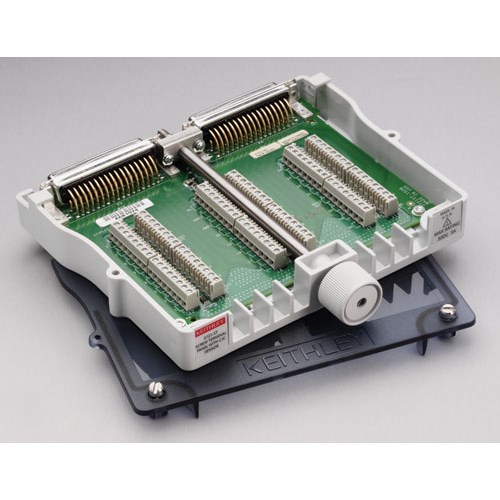

The Model 3721 offers two independent banks of 1x20 two-pole multiplexers. The two banks can automatically be connected to the Series 3700A mainframe backplane and optional DMM through the analog backplane connection relays. This connection allows the mainframe to reconfigure the Model 3721 as a single 1x40 two-pole multiplexer or to enable card-to-card expansion for even larger configurations. The Model 3721 provides a number of other features. In addition to the 40 channels, two fused channels are supplied for current measurements. Also, the Model 3721 includes dedicated inputs that enable 40 channels of four-wire common side ohms measurements. For thermocouple type measurements, automatic cold junction compensation (CJC) is supported when used with the Model 3721-ST (screw terminal) accessory. The Model 3721 uses two 50-pin male D-sub connectors for signal connections. For screw terminal or automatic CJC, use the detachable Model 3721-ST accessory.

Read the 3721 Dual 1×20 Multiplexer Card Data Sheet

Product Features
